Bridging the Frozen Void: The Engineering Marvel of Arctic 5G

TL;DR: Expanding high-speed mobile coverage across remote, sub-arctic highways requires rethinking infrastructure from the ground up, combining thermosyphon permafrost foundations, hybrid satellite-fiber backhaul, and hardened edge computing to transform dead zones into life-saving digital corridors.

When urban smartphone users think about mobile coverage, the conversation usually revolves around sub-millisecond latency, cloud gaming, or downloading high-definition movies in fractions of a second. But when you are driving a commercial semi-truck along an isolated stretch of sub-arctic highway—where temperatures routinely drop below -40°C and the nearest town is three hours away—cellular connectivity isn’t an entertainment feature. It is an essential life-support system.

For decades, vast swaths of high-latitude transport routes across North America and Northern Europe have remained digital deserts. The mathematical economics of traditional telecommunications dictate that expensive towers should be placed where people live, not along hundreds of miles of frozen taiga. However, a major engineering shift is underway. Telecom operators are mounting ambitious infrastructure projects to roll out robust multi-frequency coverage across isolated highways, pushing mobile connectivity into environments where standard equipment fails within hours.

Deploying high-frequency networks like 5g across remote Arctic and sub-Arctic corridors requires solving a triad of severe engineering constraints: extreme thermal stress, lack of electrical grid access, and volatile backhaul topology. The strategies being deployed along these northern arteries offer a masterclass in resilient infrastructure design.

---

The Physics of Building in Frost: Overcoming Permafrost and Extreme Cold

Building a standard cellular macro-tower in temperate climates involves digging a concrete foundation deep into stable soil, pouring thousands of pounds of cement, and connecting directly to a local power utility. In sub-arctic highway corridors, almost none of these steps are possible.

The primary obstacle is permafrost—ground that remains completely frozen for two or more consecutive years. Installing traditional heavy concrete foundations can actually transmit ambient heat downward into the soil during warmer summer months, melting the underlying permafrost. Once the ground thaws, the foundation shifts, tilts, and risks structural collapse.

To overcome this, structural engineers utilize specialized thermal control systems:

• Thermosyphon Pilings: Passive heat pipes filled with a fluid refrigerant (such as carbon dioxide or ammonia) are driven deep into the earth alongside steel support piles. During cold months, the fluid evaporates at the warmer bottom, rises, condenses at the cooler top above ground, and releases heat into the air, keeping the ground permanently frozen even when surface temperatures briefly rise.
• Elevated Equipment Platforms: Cabinets housing radios, power supplies, and baseband units are elevated off the ground surface on steel stilts, preventing thermal radiation from warming the underlying permafrost while protecting equipment from drifting snowbanks.
• Insulated Micro-Enclosures: Standard outdoor telecom cabinets rely on passive air convection or simple air conditioning. High-latitude enclosures utilize vacuum-insulated panels paired with internal heating elements powered by dynamic thermal management software.

remote cellular tower with solar panels in winter snow — Photo by LEDC on Unsplash

Powering these sites presents an equally daunting challenge. Many highway stretches sit hundreds of miles away from grid infrastructure. Historically, remote sites relied on legacy diesel generators that required constant refueling truck runs—a dangerous and unreliable process during winter blizzards.

Modern Arctic cell towers operate as self-contained micro-grids, combining high-efficiency solar arrays angled vertically to catch low winter sun, low-cut-in wind turbines, and advanced lithium iron phosphate (LiFePO4) battery banks equipped with self-heating thermal jackets.

---

The Backhaul Dilemma: Fiber, Microwave, and Low Earth Orbit

A cellular tower is only as effective as its connection back to the core network. Establishing reliable backhaul across hundreds of miles of uninhabited wilderness is often more expensive than constructing the towers themselves.

Traditionally, service providers relied heavily on long-distance microwave relay chains—a series of line-of-sight towers hopping signals across mountain ranges and tundra. However, heavy snowfall, atmospheric ducting, and ice accumulation on antenna radomes can severely degrade high-frequency microwave links.

To create redundant, high-throughput backhaul networks along northern corridors, telecommunications architects are deploying a hybrid matrix combining physical fiber optics with space-based links.

+-------------------------------------------------------------------+ | ARCTIC BACKHAUL ARCHITECTURE | +-------------------------------------------------------------------+ | [ Fiber Backbone ] <---> Main Transcontinental Highway Route | | | | | v | | [ Microwave Relay ] <---> Short-Hop Inter-Tower Links | | | | | v | | [ LEO Satellite ] <---> Failover / Ultra-Remote Topography | +-------------------------------------------------------------------+

Where possible, heavy machinery buries insulated fiber cables along road rights-of-way, though permafrost frost-heaves frequently threaten underground cables. Where ground burial is impossible, engineers rely on Low Earth Orbit (LEO) satellite constellations as primary or secondary backhaul channels.

According to regulatory filings with the Federal Communications Commission, integrating non-geostationary satellite backhaul into rural LTE and 5G base stations significantly lowers deployment costs in terrain where laying fiber costs upwards of $100,000 per mile. By coupling high-throughput satellite terminals directly to baseband units on the tower, carriers can establish reliable sub-100ms latency connections back to metropolitan core switches.

---

Comparing Remote Connectivity Architectures

Choosing the right backhaul and power strategy depends heavily on geography, local weather patterns, and proximity to regional infrastructure. The matrix below illustrates the trade-offs between different engineering approaches used along extreme highway deployments:

Backhaul Architecture	Average Latency	Permafrost Vulnerability	Bandwidth Potential	Weather Resiliency
Fiber-to-Tower (Buried)	Very Low (< 5ms)	High (Frost-heave damage)	Extremely High (Multi-Gbps)	High
Microwave Relay Chain	Low (5–15ms)	Moderate (Tower tilt affects beam alignment)	High (Up to 10 Gbps short-range)	Moderate (Rime ice degradation)
LEO Satellite Backhaul	Medium (30–60ms)	Low (Minimal ground footprint)	Moderate (100–500 Mbps per sector)	High (K-band precipitation fade)
GEO Satellite Backhaul	High (500–700ms)	Low (Minimal ground footprint)	Low to Moderate (20–100 Mbps)	Moderate

---

5 Technological Innovations Powering Arctic Cellular Networks

To make continuous highway coverage possible in extreme conditions, telecommunications equipment vendors have had to adapt standard mobile networking gear. Five key technological breakthroughs stand out:

1. Cold-Hardened LFP Battery Enclosures: Modern deployments use customized Lithium Iron Phosphate battery banks fitted with phase-change insulation and internal heating elements that utilize waste heat from power amplifiers to keep ambient cell temperatures within operating ranges, even at -50°C.
2. Dynamic Beamforming Sub-6GHz Arrays: Rather than deploying fragile mmWave radios that suffer from extreme atmospheric attenuation in heavy snowstorms, northern highway networks prioritize mid-band (2.5 GHz – 3.7 GHz) and low-band (600 MHz – 800 MHz) spectrum. Advanced Massive MIMO antennas use dynamic digital beamforming to shape coverage directly along the highway ribbon, extending cell reach by several miles per tower.
3. Local Edge Emergency Fallback: Baseband units on isolated highway towers are increasingly fitted with localized edge computing modules. If backhaul to the main network core is severed, the tower retains a localized subscriber registry, allowing local emergency calls (such as 911 equivalents), SMS broadcasts, and tower-to-tower peer communications to remain operational locally.
4. Thermosyphon Ground Stabilization: By utilizing passive, zero-energy fluid convection pipes embedded directly alongside steel pile foundations, engineers lock the surrounding permafrost in a perpetual deep-freeze state, preventing structural shifts during summer thaws.
5. Hybrid Micro-Grid Power Controllers: Specialized programmable logic controllers (PLCs) continuously monitor real-time weather forecasts, battery states of charge, and solar/wind inputs, automatically throttling non-essential radio channels during extended dark, windless winter periods to preserve critical emergency voice coverage.

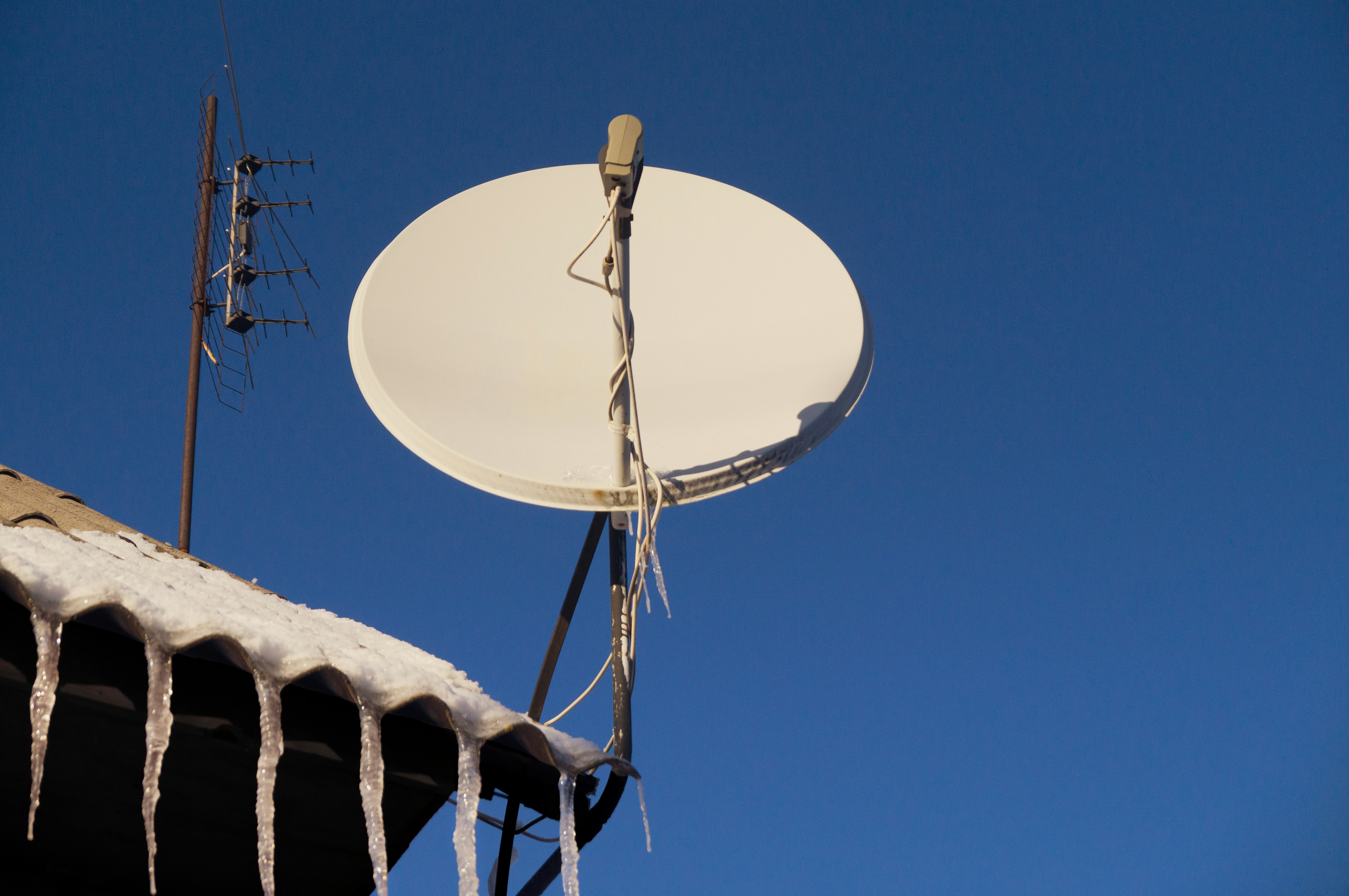

satellite ground dish installation surrounded by snow and ice — Photo by maks_d on Unsplash

---

Beyond Safety: The Economic Impact on Freight, Mining, and Industry

While emergency voice calls and public safety represent the immediate humanitarian driver for expanding remote coverage, the commercial incentives are equally compelling.

Heavy industrial sectors operating in northern latitudes—including mining, oil and gas, and timber transport—rely heavily on long-haul freight corridors. Uninterrupted high-speed cellular networks enable real-time fleet telematics, driver fatigue monitoring, automated logistics tracking, and predictive maintenance alerts. Many industrial operators are integrating these highway networks into broader biz it enterprise architectures to manage supply chains spanning thousands of miles.

Furthermore, as autonomous haulage systems and driver-assist technologies mature, reliable highway connectivity becomes a non-negotiable safety prerequisite. Intelligent Transportation Systems (ITS) utilize low-latency cellular connections to send hazard warnings, ice conditions, and wildlife obstruction alerts directly to vehicle onboard units long before a driver rounds a blind curve.

Organizations like the International Telecommunication Union highlight that extending mobile infrastructure into underserved, extreme geographical regions acts as a primary catalyst for regional economic development, transforming remote industrial transportation corridors into safer, more efficient trade routes.

---

The Road Ahead: What High-Latitude 5G Means for Global Telecoms

The aggressive expansion of LTE and 5G networks across arctic and sub-arctic transport corridors proves that geographic isolation is no longer an insurmountable barrier to modern telecommunications. By pioneering resilient civil engineering techniques, leveraging satellite-fiber hybrid backhaul, and deploying hardened hardware, telecom engineers are setting a new standard for infrastructure reliability.

As researchers continue exploring sustainable energy solutions and future tech innovations in low-power networking, the lessons learned on these icy highways will ripple far beyond the Arctic Circle. The techniques refined in sub-zero wilderness will ultimately inform how networks are built in desert, island, and mountain regions across the globe—proving that anywhere a road can go, connection can follow.
