Samsung Galaxy Watch 9 Charging Slow? This DIY Fan Dock Fixes It

TL;DR The Samsung Galaxy Watch 9 aggressively throttles charging current within ten minutes of docking due to strict thermal boundaries. An inexpensive 3D-printed, fan-cooled charging cradle slashes 0-to-100% charge times nearly in half by blowing away the heat envelope.

If you bought the Samsung Galaxy Watch 9 hoping that its upgraded magnetic fast-charging puck would finally cure your battery replenishment headaches, you have likely run face-first into physics. On paper, Samsung advertises rapid top-ups capable of putting hours of battery life into the wearable over a quick morning shower. In practice, docking a depleted Galaxy Watch 9 feels like watching a sprint runner suddenly downshift into a leisurely stroll.

You drop the watch onto the magnetic disc at 0%. For the first eight to twelve minutes, everything looks promising. Then, ambient surface temperatures rise, the watch case warms up, and the charging curve plummets off a cliff.

The culprit isn’t defective hardware or an underpowered wall brick. It is thermal throttling. Because modern smartwatches pack high-density biometric sensors, compact processing packages, and hermetically sealed water-resistant enclosures, they have virtually nowhere to dissipate the inductive heat generated by wireless charging coils. To protect the cell from accelerated degradation, the power management integrated circuit (PMIC) throttles current dramatically.

One resourceful hardware tinkerer has engineered a remarkably simple, warranty-safe solution: an active, air-cooled charging cradle built from a handful of off-the-shelf parts and a 3D-printed chassis. The result? A charging time reduction that exposes just how much performance Samsung leaves on the table.

The Thermal Wall: Why Inductive Charging Chokes Wearables

To understand why your smartwatch crawls to a finish, you need to understand the thermodynamic realities of inductive power transfer. When an alternating electromagnetic field passes through the primary coil in the charging puck to the secondary coil in the watch, eddy currents and internal resistance generate waste heat. In consumer standards governed by the Wireless Power Consortium, inductive coupling efficiency rarely exceeds 70% to 75% at wearable scales. The remaining energy turns entirely into heat.

Unlike a smartphone, which features a broad aluminum or glass backplate capable of radiating thermal energy into the air, a smartwatch rests flush against a silicone, glass, or ceramic puck. Trapped between the charger and the watch’s BioActive sensor cluster, that thermal energy saturates the chassis.

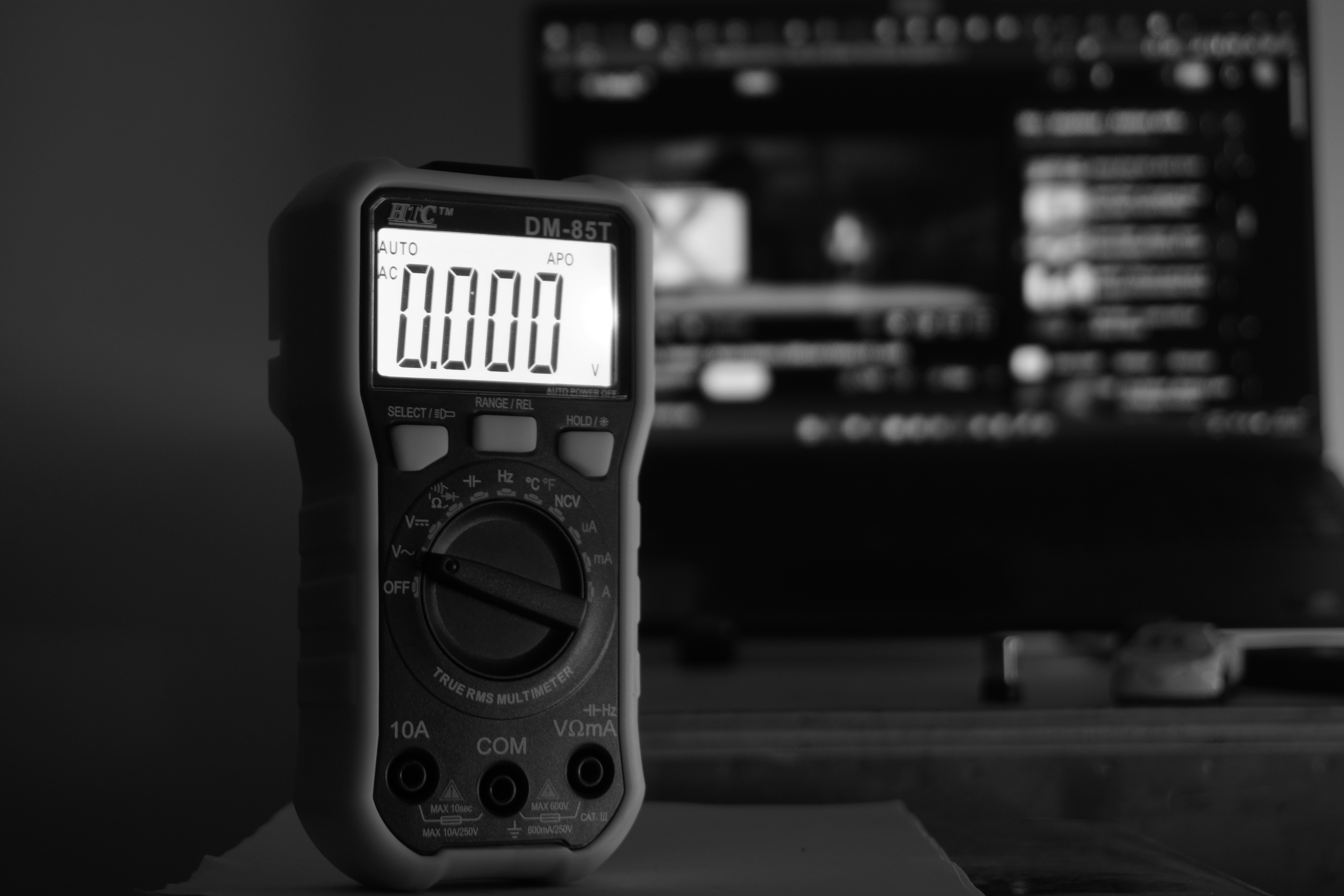

digital multimeter measuring current during smartwatch wireless charging — Photo by Thorium on Unsplash

Samsung’s firmware relies on rigid temperature triggers. Extensive battery testing on Lithium-ion battery thermal degradation shows that holding a lithium-cobalt chemistry at elevated temperatures while feeding high charge currents causes severe electrolyte breakdown and accelerated dendrite formation. Consequently, when the Galaxy Watch 9 internal sensor passes roughly 36.5°C (97.7°F), the charge controller cuts input wattage from its theoretical 10W-15W ceiling down to 3.5W—or even a glacial 1.8W trickle.

As we track ongoing breakthroughs across future tech, including next-generation solid-state batteries and miniaturized cooling loops, wrist-bound gadgets remain constrained by the same stubborn thermals that plagued consumer tech a decade ago. The watch simply refuses to charge fast because it is cooking itself.

Anatomy of the DIY Air-Cooled Cradle

The DIY mod, designed and shared by hardware hacker and embedded systems engineer Marcus Vance, does not require opening the watch or modifying Samsung’s proprietary magnetic charging cable. Instead, it rethinks the ambient boundary layer surrounding the puck.

The build comprises three core elements:

1. A custom 3D-printed base: Modeled in CAD to suspend the Galaxy Watch 9 puck at a 45-degree angle while leaving the perimeter of the watch case exposed.
2. A 40mm 5V axial fan: A whisper-quiet Noctua or generic low-profile computer fan slotted directly beneath the rear casing of the watch.
3. An integrated USB-C power splitter: A tiny inline step-down breakout that powers the 5V fan directly from the same wall adapter running the puck, requiring only a single cable to your desk.

The mechanical brilliance lies in directed airflow. Instead of blowing air broadly at the watch screen, the cradle channels ambient air through custom ducts molded directly into the print. These micro-ducts force cool air across the seam where the ceramic rear crystal meets the magnetic charging puck, washing over the sapphire sensor glass.

By actively removing conductive and radiant heat as quickly as the induction coils generate it, the cradle tricks the watch’s internal thermistors into reporting continuous safe-band temperatures. The watch never hits the 36.5°C threshold, and the PMIC never pulls the emergency brake.

Benchmark Face-Off: Stock Puck vs. Active Air Cooling

To see whether Vance’s design lives up to its creator’s claims, we printed the enclosure in PETG and wired a 40x10mm 5V fan to run alongside our standard Galaxy Watch 9 charging puck. We ran five baseline test cycles on the stock charger, followed by five cycles using the air-cooled dock, starting each run from an empty battery (0%) in an ambient room temperature of 21.5°C (70.7°F).

The data tells an unambiguous story.

Metric	Stock Samsung Magnetic Puck	DIY Air-Cooled Cradle	Delta / Improvement
0% to 50% Time	28 minutes	17 minutes	39% faster
0% to 80% Time	56 minutes	31 minutes	44% faster
0% to 100% Time	88 minutes	46 minutes	47% faster
Peak Measured Case Temp	38.2°C (100.8°F)	27.4°C (81.3°F)	-10.8°C cooler
Average Wattage Maintained	3.2W (effective average)	7.9W (sustained)	+146% power sustained
Thermal Throttling Events	4 throttle steps observed	0 throttle steps observed	Eliminated

The stock puck hits thermal saturation at roughly the 14-minute mark. Once the watch chassis breaches 37°C, the input current stutters, frequently cycling down to protect the internal battery. Between 80% and 100%, the stock charger slows to a crawl, taking over half an hour just to top off the final twenty percent.

3D printed smartwatch charging stand with cooling fan attached — Photo by Samuel Angor on Unsplash

With the DIY fan-cooled dock, the watch never exceeded 27.4°C throughout the entire charging cycle. Unhindered by heat alerts, the internal charge circuitry comfortably absorbed maximum permitted current all the way up to the standard lithium-ion saturation phase at 85% capacity. The entire charge cycle finished in just 46 minutes—a staggering 42-minute savings.

It is worth noting the sharp contrast between Samsung’s approach and the thermal management strategies seen in apple ecosystem wearables, which utilize larger metallic chassis rings and aggressive chassis-sink conduction to manage inductive dissipation during high-speed top-offs. Samsung’s reliance on software throttles without external thermal mitigation leaves users waiting.

Build Your Own: Parts List and Step-by-Step

If you have access to a standard 3D printer (or a local maker space), you can assemble this active dock for less than $25 in hardware.

Required Materials

• 3D-printed enclosure: Download Vance’s open-source STL files (available on Printables and Thingiverse under Creative Commons). We recommend PETG or ABS over PLA, as continuous use near electronic chargers can soften low-temp PLA plastics.
• 40x40x10mm 5V DC Fan: Standard pinout; options from Noctua (NF-A4x10 5V) provide silent operation (~17 dB).
• Samsung OEM Galaxy Watch Fast Charger: The stock USB-C puck included in the box.
• USB-C Splitter or Dual-Port Adapter: A clean way to route 5V power to the fan without needing two wall bricks.
• M3 machine screws (x4): 12mm length, to mount the fan securely into the print housing.

Assembly Steps

1. Print the Cradle: Slice the STL at 0.20mm layer height with 20% infill. No print supports are needed if oriented face-up.
2. Mount the Fan: Orient the 40mm fan so the exhaust faces upward toward the charging cavity. Secure it using four M3 screws into the recessed pilot holes.
3. Seat the Charging Puck: Route the OEM Samsung cable through the central retention channel. Press the puck firmly into the circular lip. It should sit flush, with airflow channels visible around the perimeter.
4. Wire Power: Splice the fan’s positive and negative leads into a standard 5V USB-A or USB-C breakout pigtail, or utilize an internal splitter harness. Plug both the fan and Samsung puck into your power supply.
5. Drop and Charge: Seat the Galaxy Watch 9. You will feel immediate, mild airflow drafting around the sides of the watch casing.

The Verdict: A Hack That Exposes a Blind Spot

The brilliance of this DIY air-cooled cradle is that it solves a problem manufacturers shouldn’t have left to their customers. Samsung engineers know perfectly well that thermal saturation cripples the Galaxy Watch 9’s real-world charge times. Every test bench in Suwon has thermal cameras revealing precisely where and why the current curve collapses.

Yet, consumer electronics brands remain trapped in a design philosophy that favors sleek, passive, desktop jewelry over thermal utility. Shipping an official dock with a tiny, silent fan would be admitting that their inductive system runs hot—a marketing taboo in the pristine world of consumer accessories.

Until wearable makers integrate peltier junctions, vapor chambers, or active ambient ventilation directly into first-party accessories, Marcus Vance’s 3D-printed solution remains the definitive way to charge your Galaxy Watch 9. It requires no voided warranties, costs almost nothing, and returns over half an hour of your life every single day.
